IoT host, pure local deployment. It supports TCP, UDP, LoRa, RS485, RS232, GPIO, RELAY output and other rich IoT device access, with a maximum of 500 devices. Support LoRa wireless smart device access, support network, serial port, dry node and other wired equipment access.
Features
1. IoT Host-7300, supporting wired and wireless network control. Wired support includes TCP/UDP, RS485 serial port, IO port, etc. Wireless support includes Lora protocol for controlling audio, video, and lighting equipment (compatible with hundreds of device types).
1. Supports WEB page editing and management, visual status display, zero-code, drag-and-drop programming.
2. Five major intelligent strategies allow simple checkbox and drag-and-drop editing, enabling linkage functions between devices and broadcast control software, etc. Advanced functions desired on-site can be easily achieved.
3. Three types of operation logs ensure traceability, with visual maintenance and troubleshooting.
4. Cloud code library for quick access to control codes for various projectors, infrared control codes for TVs, etc.
5. Device object model and space management, edit once, and all APP terminals can automatically sync updates.
6. 4-in-1 functional tablet APP software, supporting "Conference Control", "Exhibition Hall Control", "Smart Office" automatic interface generation quick modes, and also supporting "Custom Mode" for custom UI interface, flexible and quick switching.
16-channel wireless and wired Supports IoT definition, connection configuration management and docking protocol configuration for devices with wired Ethernet ports, RS485, RS232 and IO interfaces. Supports access and configuration of wireless LoRa terminal devices.
8-channel wireless + wired Supports IoT modeling, connection configuration management and docking protocol configuration for devices equipped with wired Ethernet ports, RS485, RS232 and IO interfaces.
8-channel wired Supports IoT modeling, connection configuration management and docking protocol configuration for devices with wired Ethernet ports, RS485, RS232 and IO interfaces.

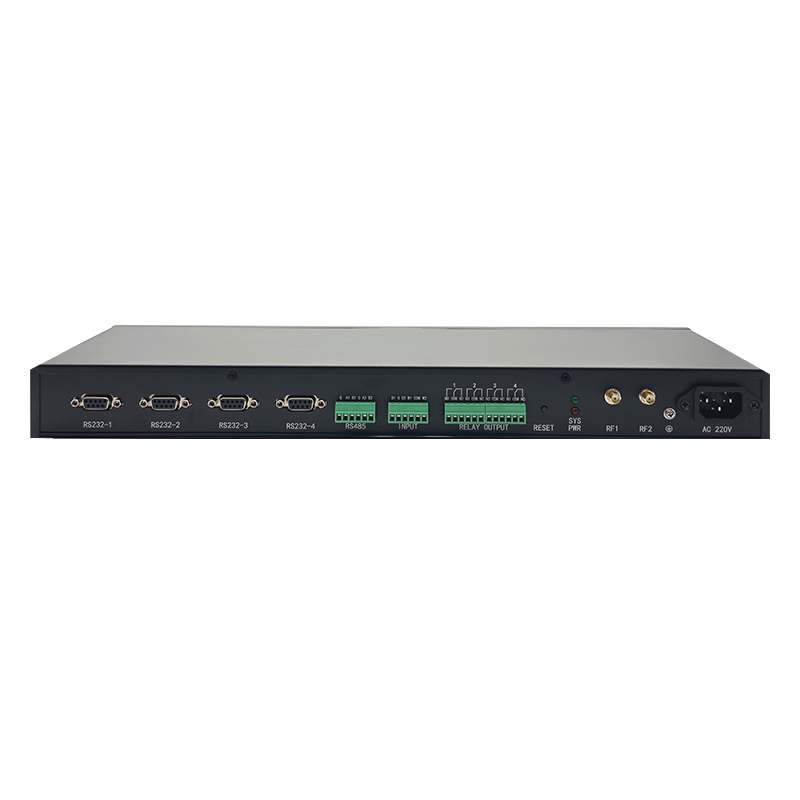

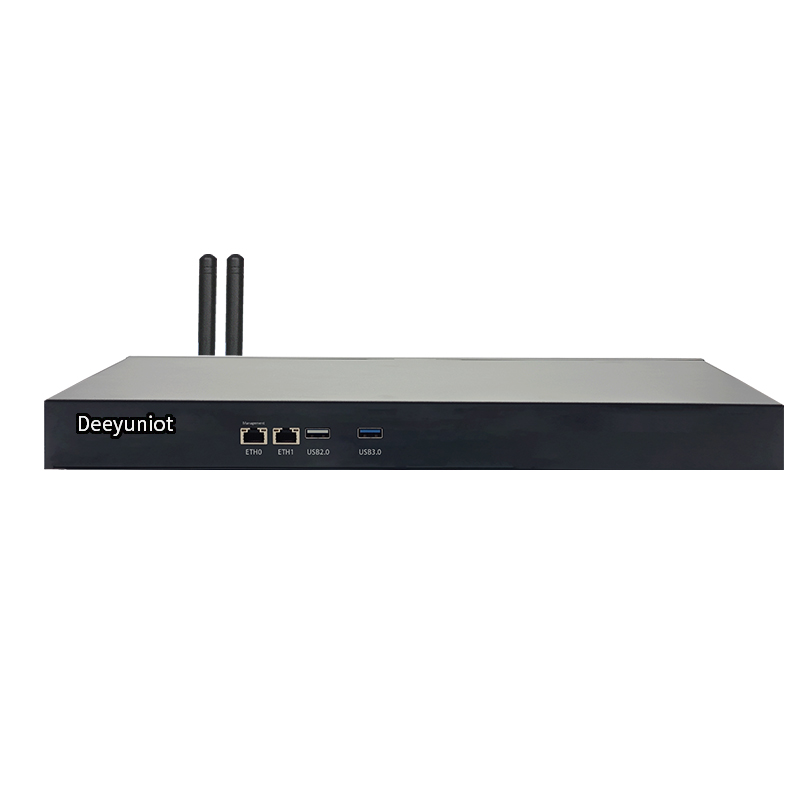

IoT host, pure local deployment.The hardware features a Gigabit Ethernet port, multiple serial ports (RS232/485), IO and relay interfaces, with USB expansion support. It integrates an infrared module (compatible with 90% of brands) and 2 LoRa wireless channels. The front button enables one-touch scene linkage, while a 2.8-inch color screen visually displays the device's operational status.
